Archer LX Overview

Welcome to the Piper Archer LX

The Piper Archer LX takes the venerable Cherokee fuselage and redefines it. The Archer LX is among one of the most recognized single-engine, four-place aircraft available today for the private owner. With a 180-horsepower Lycoming engine, advanced Garmin G1000 NXi avionics and leather-appointed, stylish interior, the Archer LX is an elegant and reliable aircraft. It is perfect for continuing your flight journey, as an enjoyable cross-country aircraft. Plus, it’s the ideal “step-in” to the Piper family of products.

Find a Local Dealer  Download Brochure

128 ktas | 237 km/h Max Cruise Speed

522 nm | 967 km Max Range

14,100 ft | 4,298 m Max Approved Altitude

1,608 ft | 490 m Takeoff Distance*

1,400 ft | 427 m Landing Distance*

*Over 50 ft Obstacle

  • Specs & Performance
  • Avionics
  • Additional Equipment
  • Safety Features
  • Aircraft Design
Specs & Performance

Specs & Performance

  • Propeller
    Sensenich 2-blade
    Fixed Pitch
  • Fuel Capacity
    Useable: 48 US Gal | 182 Liters
  • Engine
    Lycoming O-260-A4M
    Horsepower: 180 hp
  • Dimensions
    Wingspan: 35 ft 6 in | 10.8 m
    Length: 24 ft | 7.3 m
    Height: 7 ft 3 in | 2.2 m

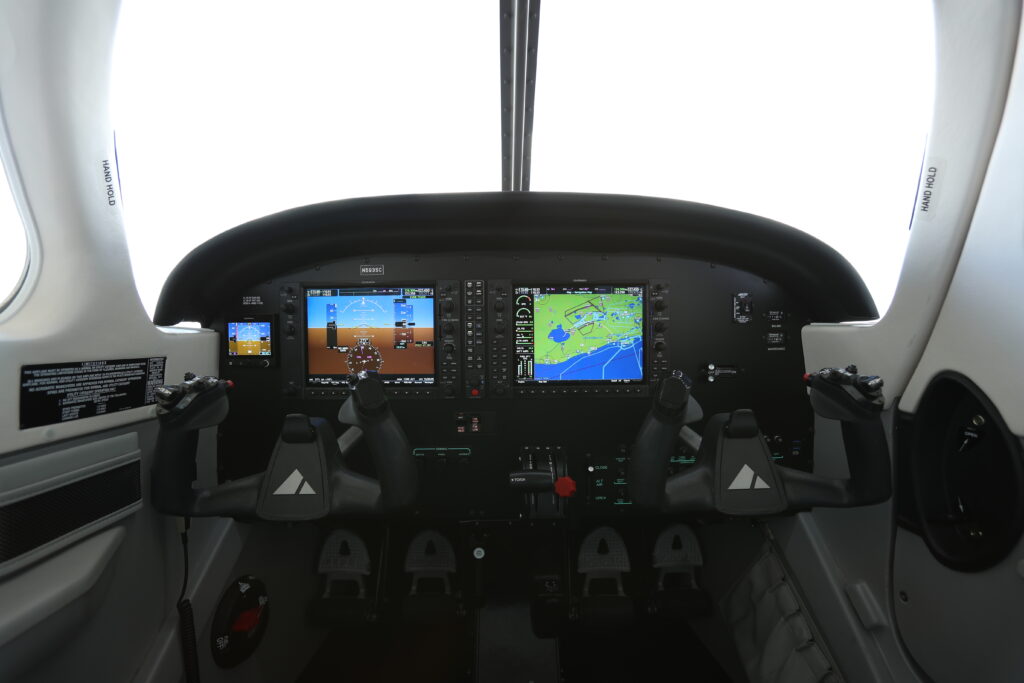

Avionics

Avionics



  • Standard Features
    • GARMIN G1000 NXi  AVIONICS
    • Dual GIA 64W NAV/COM/GPS
    • GSU 75 ADAHRS Computer
    • Garmin FliteCharts
    • Garmin SafeTaxi
    • GMA 1360 Digital Audio Panel
    • GTX 335R Transponder
    • Aspen Standby EFD1000
  • Other Equipment
    • Tail Strobe Light
    • LED Wing Tip Recognition Lights
    • Overhead Air Distribution Blower Fan
    • USB Charging Ports
    • Cockpit Stowage Pouches
    • CO Detector
    • Leather interior with luxury seating
    • Wheel Fairings
    • Low-Noise Exhaust Resonator
    • High-Temp Baffle Kit

Additional Equipment

Additional Equipment

  • Lycoming Fuel Injected Engine
  • Wet Compass
  • Enhanced AFCS Enablement
  • Jeppesen ChartView
  • GTX 345R Transponder with ADS-B “In” and “Out” (Exchange for GTX 335R Transponder)
  • GDL 69A SXM Satellite Radio / Weather
  • SVT – Garmin Synthetic Vision
  • Two (2) Bose A20 Noise Cancelling Headsets with Battery Pack
  • Flightcom Intercom system
  • TAWS-B (Terrain Awareness and Warning System)
  • BendixKing KR 87 Remote ADF
  • BendixKing KN 63 Remote DME
  • GDL 59 WiFi Data Link
  • Vision 1000 (Appareo Flight Monitoring System)
  • Flight Stream 510 with Connext
  • GTS 800 Traffic Advisory System
  • GFC 700 Autopilot
  • PiperAire Air Conditioning.
  • United Kingdom Lighting Package
  • AmSafe Seatbelts – Pilot and Co-Pilot Positions
  • AOA (Angle of Attack) Indicator

Safety Features

Safety Features

Safety is Piper’s foremost priority as illustrated by the extraordinary safety features available across the Piper product line. The Archer LX is designed specifically for efficient, luxurious, comfortable, and safe personal flying. The LX is outfitted with the latest Garmin 1000 ® NXi avionics and the most thoughtful, intuitive and inspired engineering in general aviation.



Optional Enhanced Automatic Flight Control System (AFCS – additional equipment required)

  • Electronic Stability Protection (ESP): Keeping you safe in stable flight when lying your Archer LX, the ESP system functions independently of the GFC700 autopilot and applies control force toward stable flight whenever pitch or roll deviations exceed recommend limits, or when overspeed or underspeed conditions are about to occur. ESP will also automatically engage the GFC700 autopilot if exceedences are sustained too long.
  • Automatic Level Mode (Blue Button): If you ever find yourself experiencing spatial disorientation in your Archer LX, just push the blue Automatic Level Mode button and the GFC700 autopilot will engage and return your aircraft to straight-and-level flight.
  • Underspeed Protection (USP): Your Archer LX will recognize when underspeed conditions are about to cause an inadvertent stall and make the appropriate adjustments to the controls to rectify the situation.
  • Coupled Go-Around: Your workload is simplified when flying approaches and conducting a go-around in your Archer LX, because you can keep the autopilot engaged during a coupled go-around. The aircraft will maintain a speed above stall warning and pitch attitude will automatically adjust as required.

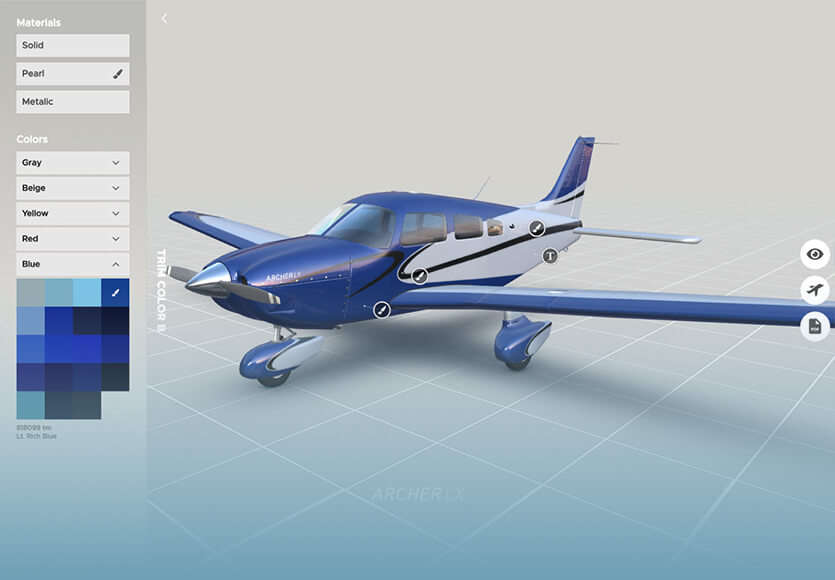

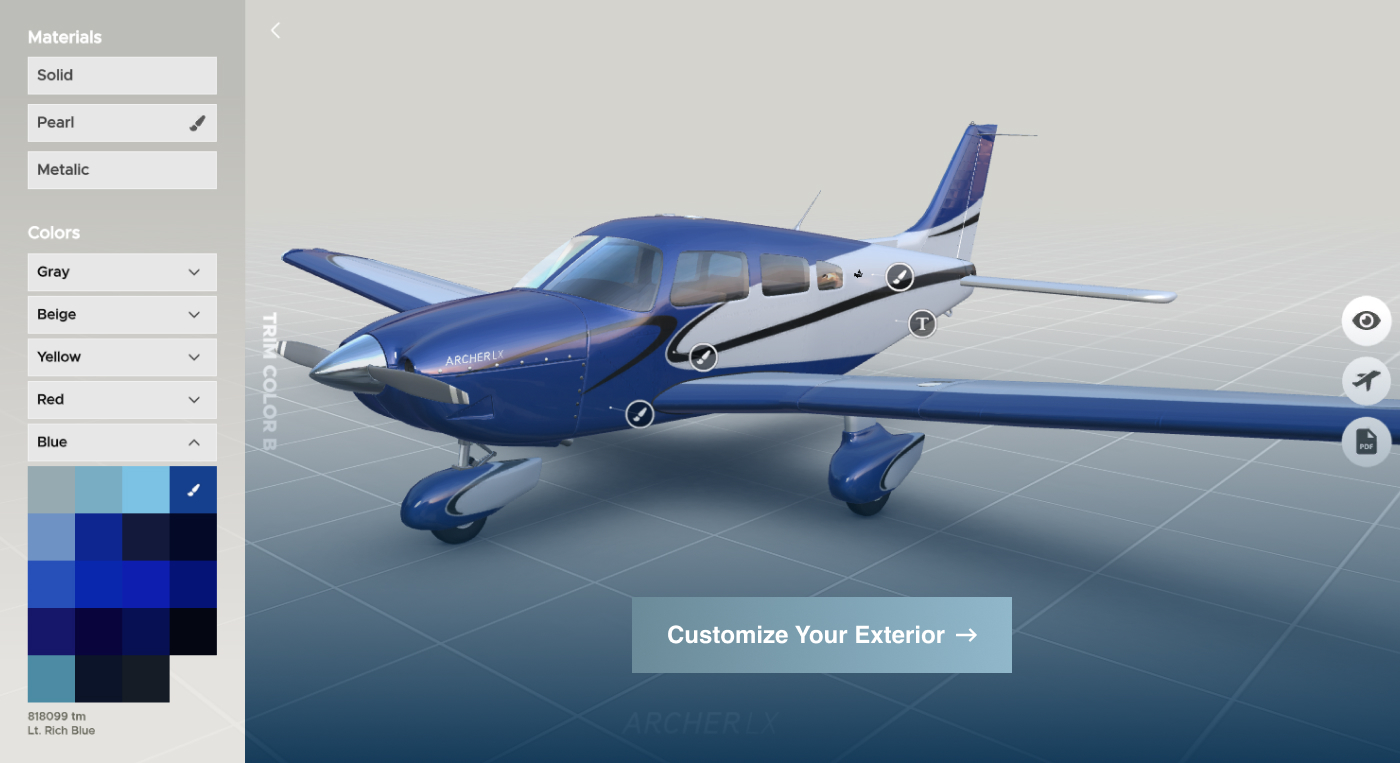

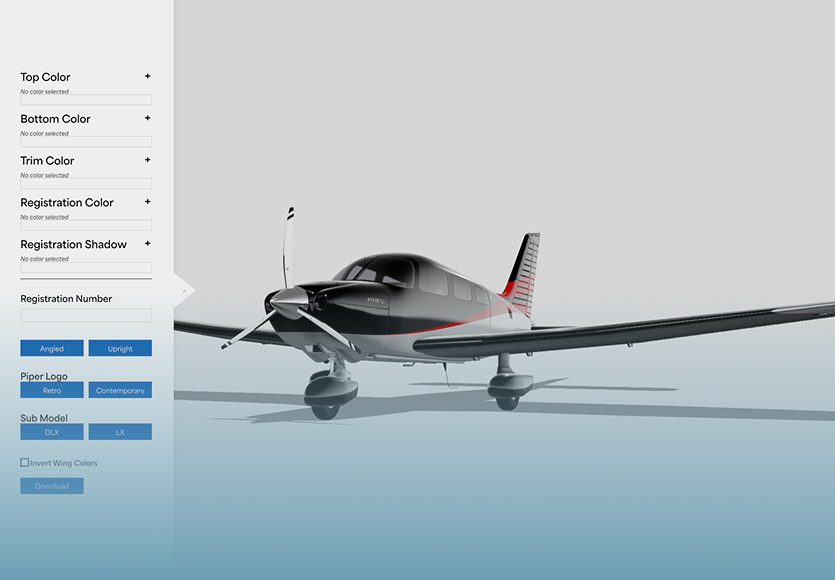

Aircraft Design

Aircraft Design

Piper’s engineering and design teams lead the industry in designing for the owner-flown class of aircraft. Ergonomic controls, seats built for comfort, and avionics placement and design, are coupled with Archer’s built-in durability and components chosen for their reliability. Your family and friends will enjoy experiencing the quality, design and care put into your Archer LX.

Archer LX

Archer TX interior
Sienna
Archer TX interior
Sand
Archer TX interior
Stone

The Cabin Above Class

The Archer LX interior is ready for high flight hours while still providing maximum comfort and durability. The Archer LX Interior is crafted with higher style, more colors and finer materials for personal transportation missions. Creature comforts abound with high end carpet and interior appointments, power plugs, lighting controls, and seat controls for each passenger.

Sienna color swatch
Sienna
Sand color swatch
Sand
Steel color swatch
Stone
