M600 Overview

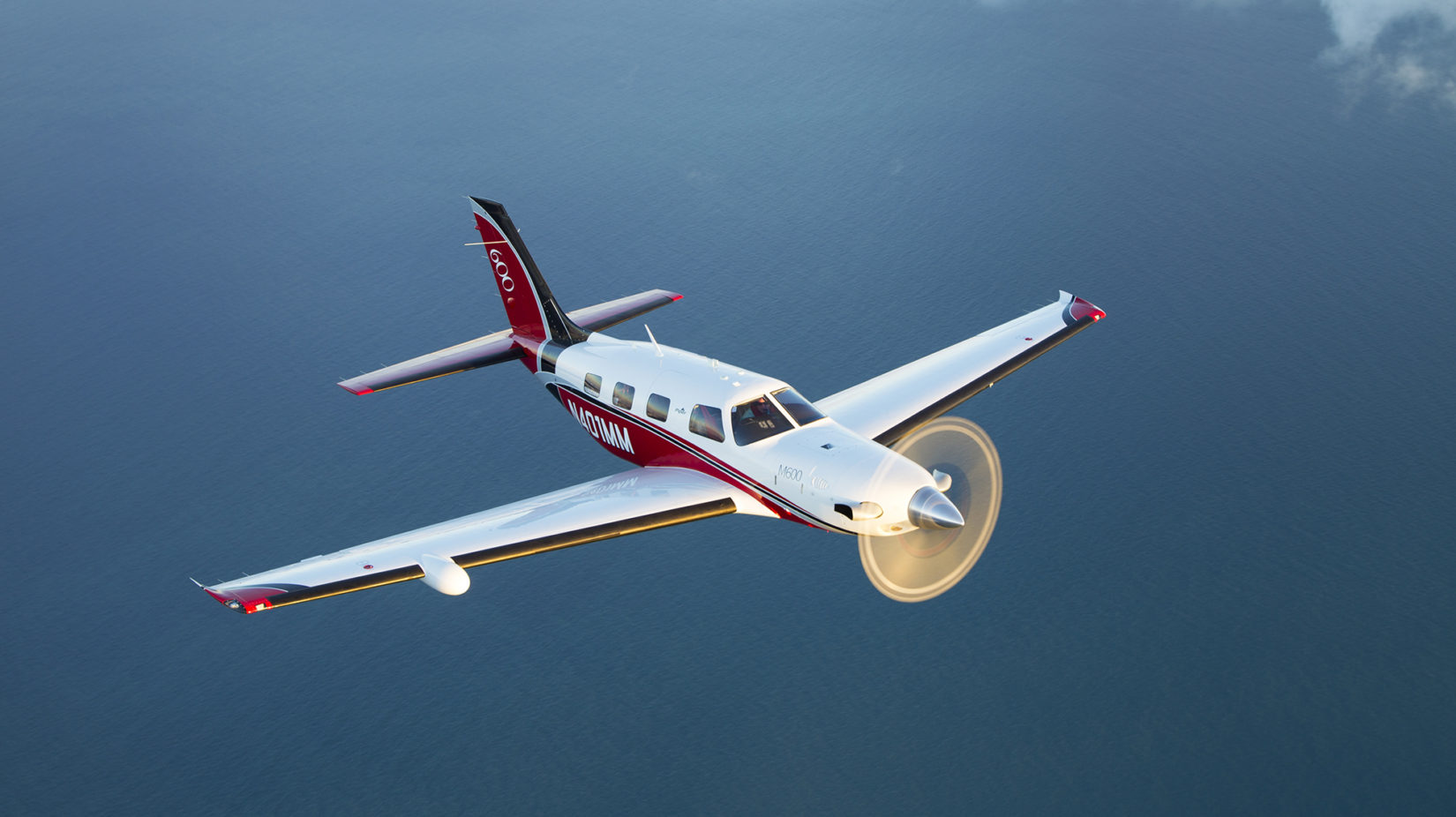

The single-engine Piper M600 is more of what you want in luxury, performance and value. Operators call it the best value in its class because it was designed for owners who want extra range and speed without the inflated cost. The wing is at the heart of the Piper M600 providing slick aerodynamics that help you go farther, and faster without leaving anything or anyone behind.

Find a Local Dealer  Download Brochure

274 Ktas  Max Cruise Speed

1,658 nm Max Range

30,000 ft Max Approved Altitude*

*For RVSM Airspace 28,000 ft | 7,925 m

  • Specs & Perfomance
  • Avionics
  • Additional Equipment
  • Safety Features
  • Range Map
  • Aircraft Design
Specs & Perfomance

Specs & Perfomance

  • Propeller
    Hartzel 5-Blade
    Constant Speed | Full Feathering | Reversible
  • Fuel Capacity
    Useable: 260 US Gal | 984 Liters
  • Engine
    Pratt & Whitney PT6A-42A
    Flat Rated Horespower at 600 shp
  • Dimensions
    Wingspan: 43 ft | 13.1 m
    Length: 29 ft 6 in | 9.0 m
    Height: 11 ft 3 in | 3.4 m

Avionics

Avionics

  • Dual PFDs
  • Single MFD
  • DUAL GTC 575 Touchscreen Cockpit Management Units
  • Dual GIA 64W NAV/COM/GPS
  • GEA 71 Engine and Airframe Interface
  • GFC 700 Autopilot with Enhanced AFCS
    • Level Mode (Blue Button)
    • Electronic Stability Protection
    • Underspeed Protection (USP)
    • Hypoxia Recognition System with Emergency Descent
    • Coupled Go-Around
    • GMC 710 AP Controller with Yaw Damper System
  • Dual GMU 44 Magnetometer Units
  • Dual GRS 79 AHRS Computers
  • GCU 476 Keypad
  • Garmin FliteCharts
  • Garmin SafeTaxi
  • GMA 350C Digital Audio Panel
  • Dual GDC 72 Air Data Computers
  • GTX 335R Transponder (ADS-B “Out”)
  • GWX 75 Weather Radar
  • Aspen EFD1000 Standby Flight Instruments
  • Integrated Digital Cabin Pressurization

Other Equipment

  • Flight Into Known Icing (FIKI)
  • PiperAire Air Conditioning
  • Hardwired Cockpit Base A20 Headsets
  • USB Charging Ports (Two cockpit, four cabin)



Additional Equipment

Additional Equipment

  • SurfaceWatch
  • 110-volt AC Power Outlet (Cabin and Cockpit)
  • Jeppesen ChartView
    • Includes One-Year Subscription to Jeppesen PilotPak
  • GSR 56 Iridium Transceiver
  • GDL 69 SXM Satellite Radio / Weather
  • Hartzell 5-blade Composite Propeller
  • L3 WX-500 Stormscope
  • SVT – Garmin Synthetic Vision
  • Becker RA3502 Remote ADF Receiver
  • TAWS-B (Terrain Awareness and Warning System)
  • BendixKing KN 63 Remote DME
  • Flight Stream 510 with Connext
  • GTX 345 Second Digital Transponder (ADS-B In and Out)
  • GTX 33D ES Diversity Digital Transponder and GTX 345 (ADS-B In and Out) with Dual Antennas (Replaces Standard GTX335)
  • Carpet Runners
  • Fire Detection System
  • AMSAFE: AmSafe Seatbelts – Pilot and Copilot Positions

Safety Features

Safety Features

Safety is Piper’s foremost priority as illustrated by the extraordinary safety features available across the Piper product line. The M600 is designed for efficient, comfortable and safe flight. The Garmin G3000 avionics suite with Enhanced AFCS,  provides the pilot of the M600 incomparable situational awareness. Its robust engineering design has stood the test of time in some of the most demanding flight environments worldwide

  • Automatic Level Mode (Blue Button LVL): Returns the aircraft to a wings-level attitude with zero vertical speed at the push of a button.
  • Electronic Stability and Protection (ESP): ESP monitors the aircraft’s flight condition, functioning independently of the autopilot, and it applies a control force toward stable flight whenever pitch or roll deviations exceed recommended limits. With the Autopilot engaged, ESP will recognize when underspeed or overspeed conditions are about to occur and bring the aircraft back within stable flight limits.
  • Hypoxia Recognition System with Automatic Descent Mode: Monitors pilot interaction when autopilot is engaged at cabin altitudes above 14,900 feet. If needed, the system brings the aircraft to a lower altitude to allow recovery from hypoxia.
  • SafeTaxi®: A highly detailed, georeferenced airport map that displays your aircraft’s position on the airfield. Also shows an overlaid map of hold short lines.
  • TerminalTraffic™: Syncs with SafeTaxi maps to display all ADS-B equipped aircraft and ground vehicles for increased situational awareness.
  • SurfaceWatch: Its clear visual and aural cues direct you to the correct runway on takeoff and approach.
  • Flight Stream 510: A wireless gateway that streamlines your workload by connecting preflight planning to your mobile device from the G3000 avionics system.
Range Map

Range Map

New York City to Dallas
1,208 nautical miles

New York City to Miami
950 nautical miles

Los Angeles to Seattle
831 nautical miles

Los Angeles to Houston
1,197 nautical miles

London to Madrid
679 nautical miles

London to Athens
1,312 nautical miles

Aircraft Design

Aircraft Design

Paint configurator coming soon

M600

Firenze Two Tone
Firenze Two Tone
Geneva Two Tone
Geneva Two Tone
Mojave Two Tone
Mojave Two Tone
Sequoia Black Two Tone
Sequoia Black
Sequoia Vanilla Two Tone
Sequoia Vanilla
Firenze Black
Firenze Black
Firenze Vanilla
Firenze Vanilla
Geneva
Geneva
Mojave
Mojave
Sequoia Black
Sequoia Black
Sequoia White
Sequoia Vanilla

The Cabin Above Class

With a sublime and beautifully appointed interior, Piper takes luxury to even greater heights with the EXP package – now standard in the M600. Customers are able to select from multiple sophisticated interior color palettes and can customize the interior design with stitching patterns and contrasting thread, as well as custom embroidery and badging. All seats are clad in hand selected and processed leather selecting either a  solid or two-toned interior seating scheme. Veneer and trim finishes further enhance the sense of unmatched refinement in a Single-Engine turboprop. (one word vs. Turbo Prop)
